Wednesday, 14 December 2016

Introduction

   I started on this issue when I had my WCF service times out when I am trying a normal socket connection. This was running fine in windows 8. We had a keep-alive WCF call which tells the server that the client is still active. For this we need the port sharing to be enabled on the machine. I was on an impression that the port sharing was not working and because of which it fails. From the log I came to a conclusion that the keep alive was failing so this made me doubt the TCP port sharing. But I could also see that when I install visual studio, then the application works. This made me doubt the .net framework. Finally I detected the slow network. This was the real culprit.

Windows 10 comes with a real time protection which scans each packets received across TCP. This slows down the network. The fix for this is to disable the real time protection.

On the windows settings you can find windows defender. You can switch off real-time protection.

But nothing is intended for bad purpose. So let’s not disable it. We have an option of setting the exclusion list. We have to use that to ignore known applications from this real time scanning. This was we can bring the application back to normal.





Friday, 22 July 2016

Introduction

  It is important that we test an application in all network conditions. This is because we may want to put demand on a system or device and measure its response to determine a system’s behavior under both normal and anticipated peak load conditions. This makes sure that the application is robust enough to handle all the network conditions before we roll out to users. It would be a painful task to do this kind of testing without the help of any software which hook up the adapter and controls the packet flow. In the absence of such software we will have to manually pull the network wires every time. Also this approach won’t help us test the spiky network conditions. To help us in these testing we have a tool which is called Network Emulator for Windows Toolkit (NEWT). In this article we will see how to configure and use Network Emulator Toolkit to test an application in limited network bandwidth.

Network Emulator Toolkit

NEWT is a software-based solution that can emulate the behavior of both wired and wireless networks using a reliable physical link, such as an Ethernet. It is available in a 32 Bits version and a 64 Bits version. You can download this from https://blog.mrpol.nl/2010/01/14/network-emulator-toolkit. This is a pretty handy tool which can mimic all the behaviors of a network. It can be configured to setup latency on packets in the network and can be configured to raise random errors and can be configured to not to deliver some packets and many more. Here I will show some of handy features of this tool. But all other functionality will be self-explanatory once you start using this tool.

1. Configure Network Emulator Client for limited bandwidth.

 This setup is relatively simpler. The network emulator has an option to select the network type. We could choose the dial up network so that it allows packets up and down as if we have a dial up network.
Once installed, open the Network Emulator Client in administrator mode. This will open up Network Emulator Client as shown in the figure below. Here you can see the drop down to select the network types. Select the dial up option from it. It then automatically opens up the default configuration for the dial up setup. For this example the only thing which we require is this configuration. Now we have to press the start button and the network emulator will start controlling the packets.

Configure Dial-up

After configuring Dial-up network

2. Configure Network Emulator Client to mimic spiky network which can also drop some packets.

 In order to configure the advanced scenarios, let us see two important configurations in network emulator. These are Link and Filter. Link defines the network behavior when sending and receiving packets. This configuration can be used to configure packet loss, network error, packet latency, bandwidth and spiky network (connect/disconnect). Filter is used to configure the sender and receiver to which the link configuration is applied. With filter configuration you can control whether the link configuration should be applied to all traffic or to traffic from a particular IP. These configuration objects are as shown in the image below.

Configuration options
In order to configure this scenario, we have to first select the network type, let us use the dial-up network this time. You can select this from the drop-down at the top just like the way you did it in the first scenario. This opens up a channel page where the link and filter is configured. Right click on the link object and you can see a pop up window with options for UpStream and DownStream. Both have the same configuration. UpStream defines the network behavior for packets which are send from the local machine and the DownStream defines the other way. When you click on one of these, it opens up a window where you can configure loss, error, latency, bandwidth, and connect disconnect behavior of the network. This is as shown in the image below. The default option is “No” we have to select the appropriate one which we want.


The filter option is set by default. If you want to control the filter, you can right click on it and say delete. Now from the menu in the top bar, select “Configuration” and then select “New Filter”. Here the default option is all network which says the link configuration will be applied to all network cards. You can also see an option of selecting the sender and receiver, you can use this option if you want to control traffic from a particular source. Once configured, you need to press on the start button and it will control the behavior of the network.



Thursday, 4 February 2016

Introduction

    In this article I will explain in detail how to setup SQLite with EntityFramework. Setting up SQLite and EntityFramework is straight forward but when I tried, it turn out that the version available at the time when this article was written is not really straight forward. So I thought of sharing this in the form of an article. In this article we will see how we could setup a Database First Entity model with SQLite with just a simple table. In this article we will also move the SQLite and EntityFramwork into a separate dll unlike other sample applications. This is to address another scenario which we will see later in this article.

For this article we will be using

  1. Visual Studio 2012
  2. SQLite 3
  3. EntityFramework 6
  4. .Net framework 4.5

Building the application.

    Here in this example we will be having a single visual studio solution with two projects which targets .net framework version 4.5. To start with let us create an application and name it as StockWatch and the framework version should be 4.5. The main application could be any project type. This will be our main project. In my case I have created a WPF project. Now let us create a ClassLibrary project and name it as DataService and the .net framework should be 4.5. This is the project where we will be handling everything related to SQLite and EntityFramework. The main project will just remain as a dumb project which will refer to the DataService project and will fire a call to this project. This is not necessary to get everything up and running but this is to show one scenario while using SQLite which we will find towards the end of this article.

   SQLite is a third party database and there is no inbuilt driver (ADO.Net provider) in .net framework to connect to this database. To connect to the SQLite database, we need an ADO.Net provider (driver) and this is provided by the SQLite website and can be found as a nugget package. System.Data.SQLite is an ADO.NET provider for SQLite. We need it in our project to proceed with SQLite. The name of the nugget package is also System.Data.SQLite. When we install this package, it will also install EntityFramework. This package comes as a complete package for getting everything done with EntityFramework and SQLIte. So let us install this first into our DataService project.


    The prior requirement for this article is that we need an SQLite3 database with a simple table having two fields (id and name). We will now create an EntityFramework model out of this existing database. Currently EntityFramework supports ModelFirst approach but it is expected that they are going to drop ModelFirst approach going forward and we will not find this in EntityFramework7. Moreover SQLite provider for EntityFramework6 (System.Data.SQLite.EF6) does not support creation of table (such feature is not supported till date). So we cannot implement ModelFirst approach with EntityFramework when the database is SQLite. So here we will only address DatabaseFirst approach.


    We will now create a model out of this existing database. To do this, create a new “ADO.Net Entity Data Model” item to the DataService project and name it as “StockModel” and proceed. From the “Choose Model Contents” dialog which pops up, select “EF Designer from database” and proceed. Now on the “Choose Your Data Connection” dialog which pops up, click on the “New Connection” button which pops up another “Connection Properties window”. On the “Data source” section click on “Change” button which will open up another dialog to Change Data Source as shown below.

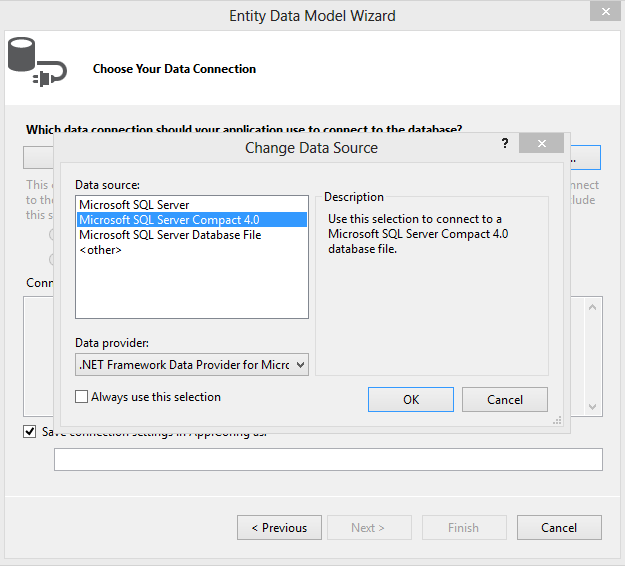

    Here we are missing the SQLite Data source in the dropdown. If you can see an entry for SQlite, then you already have everything ready in your machine and you can skip this step. Now if you are also like me, then we need to install an SQLite component for VisualStudio to have it list here. To get this component we have to go to the SQLIte site(https://system.data.sqlite.org/index.html/doc/trunk/www/downloads.wiki) and download the appropriate package for the version of visualstudio which we use. In my case I am using VisualStudio 2012 so I will download a package for VisualStudio 2012 as shown in the image below. Also the version of the package should be same as the version of the SQLite nugget package (See Issue 3 at the bottom of this article)




Now install this after downloading. While installing don’t forget to mark the option to install SQLIte component to GAC and to install the designer component for visualstudio. Once installed, please restart your machine. Once done, come back to the step where we were about to change the data source, now you can see SQLite component listed in the list and Select it and proceed.



   Now it will show another dialog asking you to select your data base, here you browse and find the database which you have created. Now when you say OK to this dialog, it will create a model out of your database.

Issue 1

You may get some error at this point like “Unable to determine the provider name for provider factory of type 'System.Data.SQLite.SQLiteFactory'. Make sure that the ADO.NET provider is installed or registered in the application config.”

This is a bug in SQLite provider. Install SQLite nugget package into the project after changing the framework version to 4.0 and later change it to whatever .net framework which you desired. This will be a one time activity and later if you wish to add this package from project which targets 4.5, then also it will work.


Now once you have fixed all issues, and when you create a model, you will get the model diagram as shown above. Now we will try to add some stock into the database using EntityFramework. For this we will create a class file in DataService project as shown below.

public class StockService
{
   private StockTradeEntities conn;
   public StockService()
  {
    conn = new StockTradeEntities();
  }

  public void AddStock(string stockCode)
  {
    Stock st = new Stock();
    st.name = stockCode;
    conn.Stocks.Add(st);
    conn.SaveChanges();
  }
}

Now refer this project from the main application and fire the method AddStock(). This will add the stock item into database. Here when you try to run the application and when you fire the AddStock method, you will get an error as below.

Issue 2

The Entity Framework provider type 'System.Data.Entity.SqlServer.SqlProviderServices, EntityFramework.SqlServer' registered in the application config file for the ADO.NET provider with invariant name 'System.Data.SqlClient' could not be loaded. Make sure that the assembly-qualified name is used and that the assembly is available to the running application.

  Now here all of our SQLite setting is added to the app.config file of our main application and it is expected that SQLite dlls must be present in the output folder where we have the app.config file. We could add the nugget package reference to the main application to fix this, but this breaks the convention of a standard application because for an enterprise application, we would expect that functionalities should be moved as separate modules for better maintenance and adding reference to components used in another module to main application doesn’t look nice or it doesn’t make sense. Here what we could do is that we will change the output directory of the DataService project to point to the same output directory of your main application. This way all the dlls referred by your SQLite module project will be available in the same folder where you have your application config file. This way you could fix this issue.

Issue 3

Cannot find the SQLite Data source in visual studio data source list even after installing SQLite component for Visualstudio.

  Here if you are getting this issue, then please make sure that you have added the SQLite nugget package to the project where you are trying to create a model. This step is necessary to have it listed in the visual studio list of data sources. When you add the nugget package, it adds certain entries to the app.config. These entries are necessary for visual studio to list the component in the data source list.


Now this is all about setting up EntityFramework and SQLite. Now you can build more functionality on top of this. :)


Tuesday, 20 October 2015

Introduction

    Starting with IIS 7, we can have IIS hosting application which can run on separate App-domain. Running application on separate App-domain is required when we need application to work in isolation i.e. to prevent applications in one application pool from affecting applications in another application pool on the server. An application can have several virtual directories, and each one will be served by the same App-domain as the application to which they belong. In most of the cases it should be fine to run an application in the default app-domain created by IIS. But on special scenarios say for example, if you want your application to be served by a different version of the run-time, then you can create an app-domain by specifying the run-time version and can use that to serve the application. Or if you want your applications to work in complete isolation then also you can do the same. Here in this post we will see how to host multiple WCF service under one website where each service is running in isolation with each on separate app-domain.

Hosting WCF service using separate app-domain.

  An application is an object important to the server at run-time. Every website object in IIS must have an application and every application must have at least one virtual directory where each virtual directory points to a physical directory path. When you create a website object in IIS, you are creating a default application. An application can have several virtual directories. To know how you can host a WCF service in default application in IIS, you can refer to the article [Article] How to host a WCF service in IIS 8. Let us now examine how we have created a website object with default application.


  Here in the IIS, in connections section, on Sites, when we right click and say “Add website” it opens up a website object(default application) creation wizard like as shown in the image above. Here “Site name” refers to the name of the site(application) which you want. “Physical directory” should point to the root directory of the website. Just for the demo purpose we will point the physical directory to an empty folder. It could also be a root folder of one WCF service where you have the .svc file. And in the section where it is asking for the “Application pool” is where we have to select the application pool or so called app-domain. Here at the moment we only have a default app domain so we will leave it as is. And if you say ok, then the website object is ready. Now what we have done here is we have created a website object, we have created a default application, we have created a virtual directory which will point to the physical directory as specified in “Physical directory” and the default application will now run in an app domain specified by us in the “Application pool” section. Now we will see how we can create another app-domain.

Creating Application Pool(App-domain)

In IIS, on the connection section, if you expand the server node, you can see “Application Pool” node. On the “Application Pools” node if you right-click and say “Add Application Pool” it will open up a window as shown below. Give a name for your new app-domain, this could be any unique name. and select the version of run-time which you like the application to run with and say Ok. Now your new app-domain is ready to use.


Adding new application object

  Now on to the website object which we just created, right click and say Add Application, it opens up a wizard to create an application object under the website object. Now in this wizard, Alias is the name which we are going to give to the application and this name is also going to be the part of the url of the application so give it a proper name. The Physical Path is where your root folder for your wcf service where you have the .svc file. Now the Application pool section is where you can select your App-domain which you created just before.



Now when you browse the .svc file from the application folder, IIS will then use the App-domain which you have assigned for the application to serve the request. In this way you can create more app domain and more WCF services which will then work in isolation.





Introduction

    In this post we will see how we can identify if the application has been maximized or it is restored to normal state. We will use the Resize event equivalent in WPF which is SizeChanged event. We will subscribe to this event and will check the window state to identify if the window has been maximized or it is restored to normal.
Application.Current.MainWindow.SizeChanged += WindowSizeChanged;
private void WindowSizeChanged(object sender, SizeChangedEventArgs e)
{
    this.HandleWindowState();
}

private void HandleWindowState()
{
    WindowState windowState = Application.Current.MainWindow.WindowState;
    if (windowState == WindowState.Maximized)
     {
     }
    else if (windowState == WindowState.Normal)
     {
     }
}
And let’s not forget to clean it by unsubscribing to the SizeChanged event by
Application.Current.MainWindow.SizeChanged -= WindowSizeChanged;

Saturday, 17 October 2015

 Introduction

  Here in this article we will see how to configure and host a WCF service in IIS 8. When we want to expose our service to internet, hosting it in IIS is the easy and effective way to do it. When you host it in IIS, it comes with all the added advantage of the web server. If you don’t want to host in IIS, you could still do that with a console application running in a server machine. To know more on hosting a service in console application and exposing an http endpoint, you can refer to [Article] How to host a WCF service in console application using wsHttp binding. The entire configuration which you will see in this article will be for Windows 8 and Visual studio 2012.

  1. Configure IIS
  2. Create a WCF service.
  3. Hosting in IIS

1. Configure IIS

  • Enable IIS – Internet information service (IIS) will be disabled by default in windows 8. We need to enable this as a first step in hosting wcf. To do this you have to go to Control Panel -> Programs and Features and select Turn windows features on or off from the left side menu and enable IIS.


  • Enable Asp.Net – The runtime which is going to serve your wcf service when you host it in IIS is the ASP.Net. By default this is disabled in IIS, we have to enable this. Without ASP.Net IIS will not be able to serve your WCF service. To enable ASP.Net you have to go to Control Panel -> Programs and Features and select Turn windows features on or off and under Internet Information Service->World Wide Web service->Application Development Features select the ASP.Net version which you want.





  • Enable WCF and its HTTP endpoint feature – We have to enable WCF and the WCF HTTP Activation feature in IIS. Without this IIS won’t be able to recognize the WCF service and it won’t be able to serve it. To enable this, go to Control Panel -> Programs and Features and select Turn windows features on or off and select .Net Framework 4.5 Advanced Services and enable WCF Services and HTTP Activation under WCF.



With this our basic features in IIS to host a WCF service is enabled. Now restart IIS and we should be able to host the WCF service.

2. Create a WCF service

  Here to test hosting a WCF service, we will create simple WCF service. We will then host this WCF service to see it in action in IIS. To begin with, let’s create a service. Create a folder called Host_wcf. Inside this folder create another folder and name it as App_Code. To this folder, create a file called DataService.cs and copy paste the service code as given below.

using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace SqliteService
{
    using System.ServiceModel;
    [ServiceContract()]
    public interface IDataService
    {
        [OperationContract()]
        void AddCustomer();

        [OperationContract()]
        void AddProduct();
    }

    public class DataService : IDataService
    {
        public void AddCustomer()
        {
        }

        public void AddProduct()
        {
            throw new NotImplementedException();
        }
    }
}


Now create a file called services.svc in the root folder, i.e. to Host_wcf and add the below line of code into it.
<%@ServiceHost language=c# Debug="true" Service="SqliteService.DataService" CodeBehind="~/App_Code/DataService.cs" %>

Here CodeBehind points to the file where we have the service implementation. Now we need a Web.config file in the root folder i.e. at Host_wcf folder. Copy paste the below line of code into it. Here the configuration is a prebuild configuration, to know more on how to create this end point, go to [Article] How to host a WCF service in console application using wsHttp binding.

<?xml version="1.0" encoding="utf-8" ?>
<configuration>
  <system.serviceModel>
    <behaviors>
      <serviceBehaviors>
        <behavior name="MEX">
          <serviceMetadata httpGetEnabled="true" httpsGetEnabled="false" />
        </behavior>
      </serviceBehaviors>
    </behaviors>
    <services>
      <service behaviorConfiguration="MEX" name="SqliteService.DataService">
        <endpoint address="Mex" binding="wsHttpBinding" bindingConfiguration=""
          name="Mex" contract="IMetadataExchange" kind="" endpointConfiguration="" />
        <endpoint address="IDataService" binding="wsHttpBinding" bindingConfiguration=""
          name="wsHttp" contract="SqliteService.IDataService" />
        <host>
          <baseAddresses>
            <add baseAddress="http://localhost:80" />
          </baseAddresses>
        </host>
      </service>
    </services>
  </system.serviceModel>
</configuration>

Now we need to set the permission for the root folder so that IIS can access content from this folder. Go to security settings of the root folder and give read and execute permission for “Everyone”. With this, we are ready with the service. When you host a service in IIS, it is the ASP.Net runtime which compiles the code behind and serve the service. So make sure that it is error free and it can compile properly. Alternatively you can create a WCF project using “WCF Service Application” project template in visual studio and compile the code to make sure that it can compile properly.


3. Hosting in IIS

Now we will see how we can host a service in IIS. Let us launch IIS. To do this type “inetmgr” in Run, it will open up the Internet Information Service (IIS) Manager. Now expand the server from left hand side under Connection section. Now expand Sites. Here we will have a default website running, the default website will be using port no 80. We are also going to host the service on port 80 which is the default http port. We cannot have two websites using same port. So we will stop the default website for time being. To do this, right click on the Default Web Site and from Manage WebSite say stop. Now right click on the Sites and say Add Website and fill in the details as shown in the image below. We can also host our service as an application under the default website but let’s do it this way.


Now here the physical path is the path to our root directory which we created to hold the wcf service files. Say OK and your service should be ready to use now. Now to confirm this, we will browse the .svc file in our service.


If everything is fine, it should pop up a page which looks something like as shown in the image below.


Monday, 12 October 2015

Introduction

    In this article we will see how to host a wcf service using the wsHttpBinding. When you use http, you would normally host it in IIS, but if you would like to host it in a console application, you could follow this article. Here we will try to host a service with a wsHttpBinding and will expose a MEX endpoint in order to expose the metadata so that any tool which can generate a proxy can use it. Here in this example we are exposing the MEX endpoint particularly to be used in the WCF test client. This article will not cover how you can generate a wcf service. If you like to know how a basic service is created, you need to read [Article] Creating WCF Service and Self Hosting in a console application.

How to edit wcf configuration.

All your wcf configuration will be stored in the app.conf file of your host project. Here in our case as we are going to host it in a console application, it will be the app.conf of the console application. You could use the wcf configuration edit tool to edit this configuration. To open the wcf configuration tool, do as shown in the image.


Adding an endpoint with wsHttpBinding

Here we need to add an wshttp endpoint. Create your endpoint as shown in the image below.


Here in the address field, give the name of the interface where you have defined a service contract. Here the address name could be anything but we will keep it as the name of the interface, this is the relative address which we are defining; we will later add a base address for this. Add wsHttpBinding on to the binding column. Here we defined wsHttp as the binding for this endpoint. To the contract field, browse to the dll where we have the interface on which we have defined the service contract. You could point to the dll where we have this interface.

Adding a base address for the endpoint.

Now we need to add a base address to the service, So that the complete address for the service will look like “Base Adress + Name of the service” Add it as shown in the image. Here the port number can be any port number except the reserved and already used.


With this, we are done creating a basic endpoint.

Adding MEX Endpoint.

Now create a wsHttp MEX endpoint as shown in the image. Here IMetadataExchange is the default contract implementation from Microsoft. We will just add this text as the contract implementation of MEX.



Now this is a MEX end point exposed via http, so we need to enable some more setting for this MEX end point to work. Go to advanced->Service Behavior->MEX and set HttpGetEnabled to true as shown in the image below.


Adding Mex behaviour to the service.

Now we need to enable MEX behaviour to the service. Do as shown in the image. Select MEX from the dropdown for BehaviorConfiguration. Remember, MEX is the name given to the Mex endpoint.


Now we are ready, now remember to run the service host as Admin, because when we have http endpoint, it requires this or else it will throw an access violation exception. Now open the WCF test client and add the service endpoint to test it.



Tuesday, 6 October 2015

Introduction

    There are scenarios where we have to show a standalone message box even before the application main window is launched. In such scenario, we need to do something different. Say if we have a composite application with a bootstrapper, and we want to show some error while running a bootstrapper, it may look difficult because we don’t have a parent window. In such scenario, we can show the message box as shown below.

private static void ShowError(string message)
        {

/* We cannot show a message out in void. So we are creating a dummy window and setting visibility as hidden. we will then use this as the parent of the message box. */

            var w = new Window() { Height = 0, Width = 0, Visibility = Visibility.Hidden, WindowStyle = WindowStyle.None };

            w.Show();
            System.Windows.MessageBox.Show(w, message);
            w.Close();
        }

Here we will create and show a window where the visibility of the window is set to hidden, now we will use this window as the parent of the message box and will show the message box.
